Series 6500 Jet Ejector Venturi ScrubberSeries 6500 Jet Ejector Venturi Scrubber

Overview

The ideal scrubber selection for low to moderate gas volumes when gaseous and or particulate contaminant removal is required.  The Series 6500 Jet Scrubber creates its own draft to eliminate the need for a fan in most cases realizing cost savings and system simplification.   Inherent with this design, gas is scrubbed with no bypass resulting in a scrubber that can be used for large turndowns in gas flows. The Jet scrubber utilizes a high scrubbing liquid to gas ratio also making it the preferred selection for treating high concentration gas streams to reduce the resultant exothermic reaction temperature rise of the scrubbing liquid.

Jet scrubbers are available in single and multiple stages or can be combined with a Series 5000 Packed Bed polishing scrubber afterwards for additional transfer units to meet extremely high gaseous contaminant removal efficiencies.

A wide choice of entrainment separator types; baffle, cyclonic and fiber or chevron blade modules enables the Bionomic Series 6500 Jet Ejector Venturi Scrubber to neatly handle a complete range of pollutants. All separator types can be integrated with scrubbing liquid recycle tanks in capacities and configurations specifically designed to meet a particular application.

How It Works

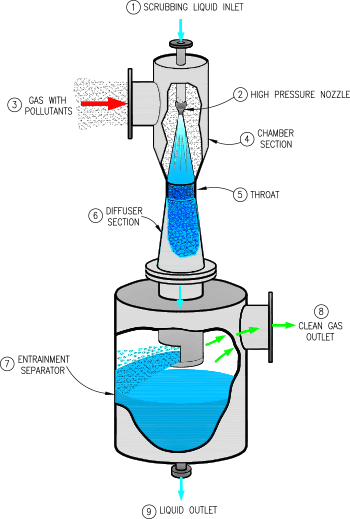

Jet Venturi How it Works DiagramThe Jet Venturi utilizes a large scrubbing liquid volume (1) introduced through a special high pressure nozzle (2) to aspirate the pollutant laden gas (3) into the chamber (4) in a concurrent flow pattern. As the gas enters the throat section (5) nozzle formed liquid sheets and droplets are sheared and break up into much smaller sizes due to the high relative velocity difference between the gas and liquid. These extremely small droplets create a tremendous amount of surface area for gas absorption and impaction collection of particulate to occur. Due to the even distribution and large volume of liquid throughout the throat cross section gases can be scrubbed even at extremely reduced rates with no appreciable decrease in removal efficiency. The gas with pollutant containing liquid droplets then proceeds out of the throat into the diffuser section (6) where further scrubbing action occurs. Droplets are removed from the cleaned gas in the entrainment separator (7) before the cleaned liquid free gas exits the system (8). The liquid with contaminants drains through the outlet (9).

Available Materials of Construction

  • PVC, CPVC, Polypropylene , FRP, Dual Laminate,  304, 316 and AL6XN Stainless Steels, Teflon Lined Steel , Hastelloy C-276 and other High Nickel Alloys

Capacity Size Range (Gas Handling Capacity)

  • 5 thru 80,000 cfm

Contaminant Removal Efficiencies

  • For water soluble gases up to 98% in single stage and over 99% with multiple stages.
  • Particulate Removal:  2 microns and above from 95 to over 99.9%.  Particulate removal can be increased with multiple stages.

Typical Applications and Uses

  • Chemical, Pharmaceutical, Energy, Food Processing and other Industries
    • Gaseous and or particulate emissions from process operation vessels, reactors and storage tanks
    • Fume emissions from laboratory hoods
    • Toxic, explosive or hazardous gases prohibiting presence of air or oxygen
    • Concentrated gas streams with high exothermic heat release
    • Emergency vents and gas cylinders
    • Chlorine from membrane cells and recovery to sodium hypochlorite solution
    • Syngas tar, particulate and hydrogen sulfide removal
    • Dust emissions form materials handling conveyors, mixers, bag filling operations
  • Pulp & Paper
    • Lime slaker dust
    • NCG Concentrated and dilute gases including methanol, hydrogen sulfide, acetone and mercaptans
  • Ceramics and Glass
    • Glass furnace particulate and acid gases, ceramic slip dust from material handling operations
  • Water Treatment
    • Emergency chlorine scrubber
  • General Fume Scrubbing
